Automatic SMT Wave soldering 300

Product Description

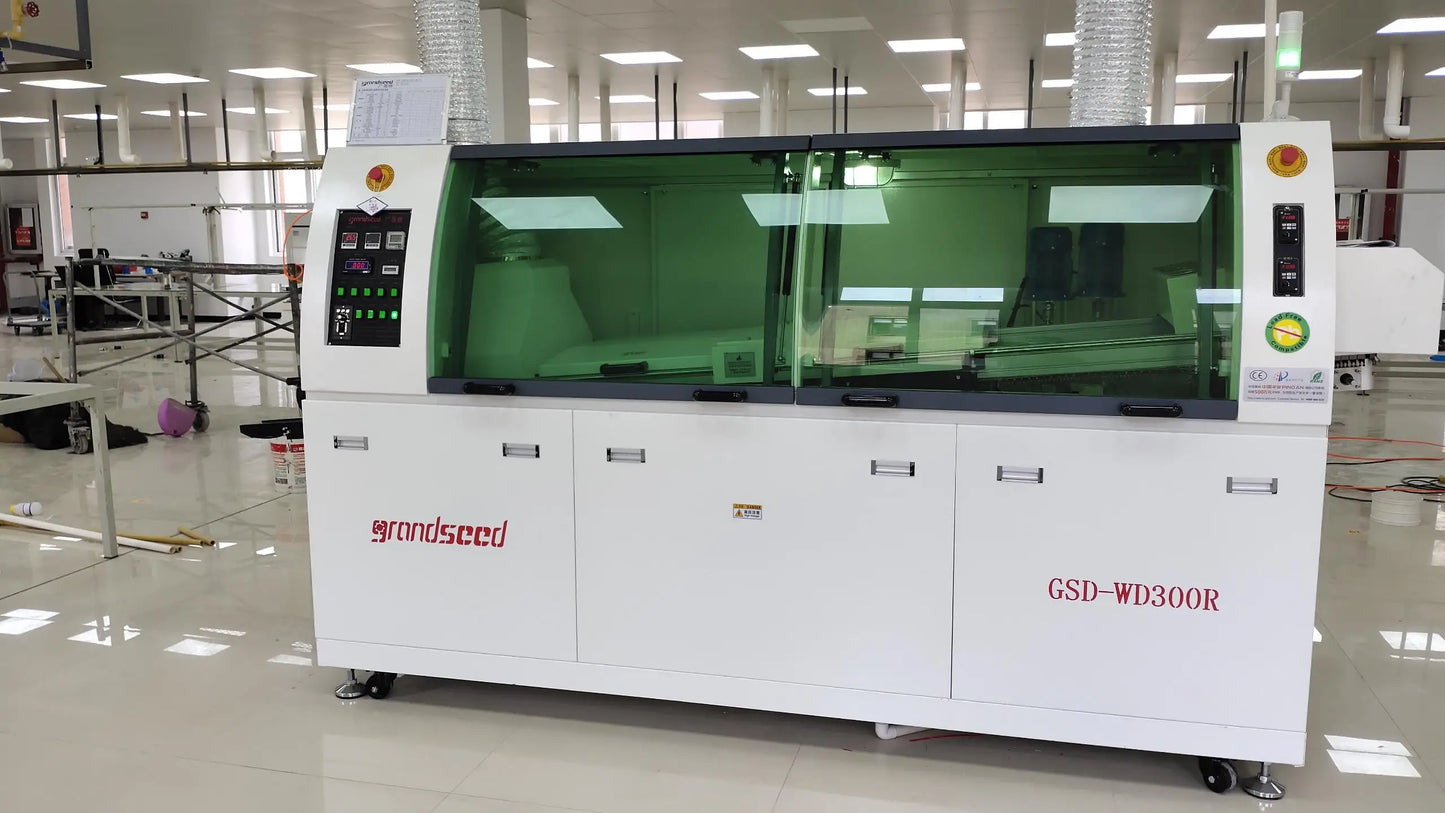

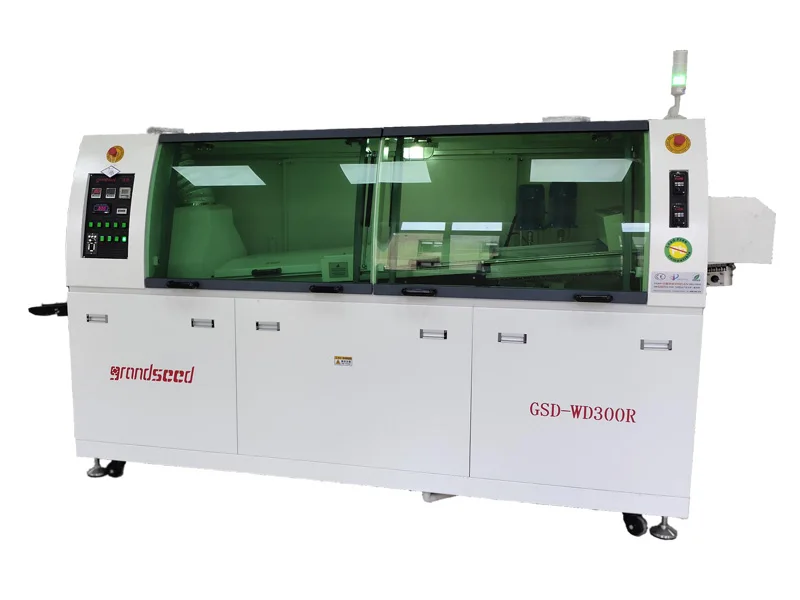

Features of GSD-WD300R Soldering series

- Button based control system, intuitive operating interface,, Grandseed independent research and development PCBASE wave soldering control software V1.0 system,significantly increased the work efficiency and decreased the production cost.

-Fully automatic transportation power system, stepless frequency conversion speed regulation, automatic synchronous board feeding, and PCB board automatically entering the spray system.

-Automatically start soldering when PCB enters soldering pot zone, and automatically stop when finished.(Patent No.:ZL 2010 2 0056206.3)

-The machine adopts lead-free environmentally friendly independent design, which is convenient and safe in going up and down as well as going in and out, and is easy to clean.

-The machine adopts high grade imported stainless steel, and aluminum silicate for thermal insulation material, when the temperature inside of the solder pot is 270℃, outside temperature≤60℃, which means good heat preservation effect and extremely high security.

-3mm thick lead-free stainless steel material, resistant to high temperature and corrosion, suitable for lead-free processes, with a long service life; Comes with a standard furnace liner.

-The machine adopts a 5-sided heating method, with fast heating and automatic on/off time design. The tin furnace can be produced within 70 minutes of heating time

-The solder pot adopts imported high-temperature motors, stepless frequency conversion speed regulation, independent control, and stable peak performance;

-The heating of the solder pot adopts a high-speed PID external heating two-stage independent control, which heats up quickly and solves the problem of tin explosion in the tin furnace;

-The spray nozzle of solder pot can be adjusted according to the width of the PCB board you want to pass through, reducing the area of ineffective welding and minimizing the contact area between solder and air, greatly reducing the oxidation of solder. The tin bars contain different impurities, and there may be deviations in the tin slag. Suitable for various lead-free solder materials such as Sn/Zn and Sn/Cu, with tin slag oxidation rate within 0.8-2.0KG every 8 hours (depending on the size of the PCB board) The machine increase diversion channels and anti oxidation sleeves to reduce black powder and tofu residue like oxides.

-The design is reasonable, and the tin slag is automatically collected. Cleaning the tin furnace is simple, convenient, and safe, without the need to scoop up the tin slag every day. It can be cleaned once a week or longer according to the situation.

Company Information

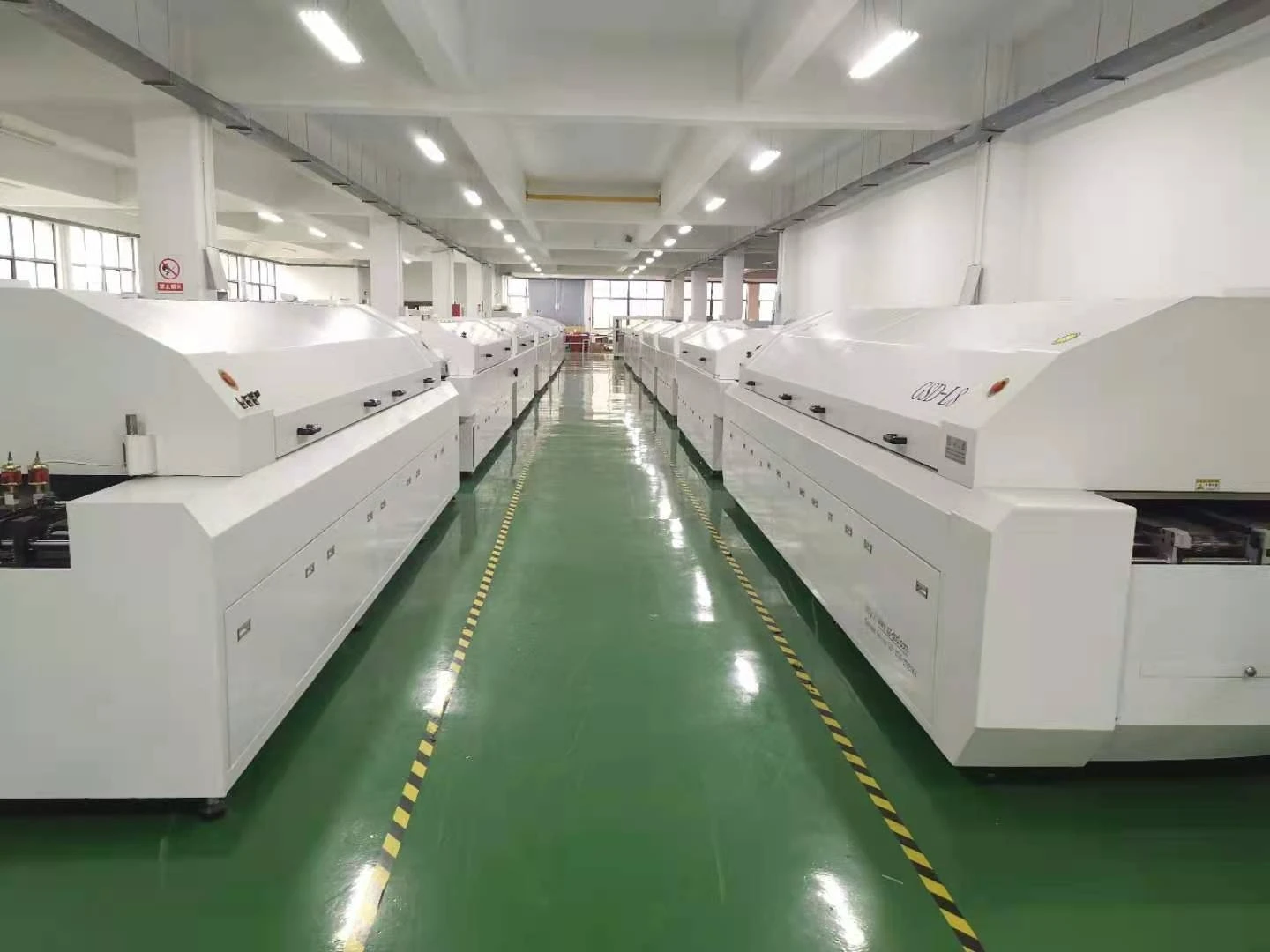

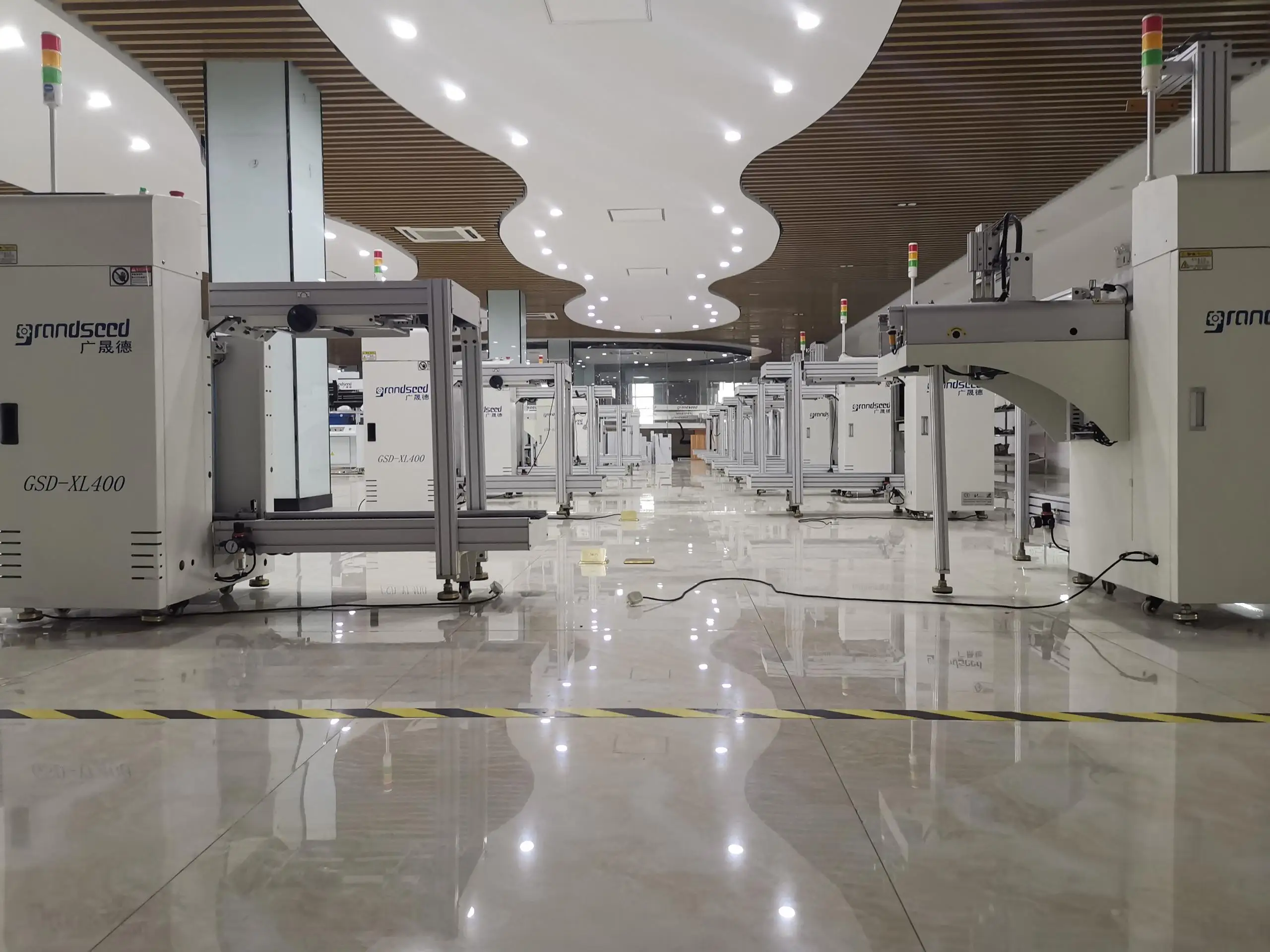

Shenzhen Grandseed Technology Development Co., Ltd  founded in 2011, which focus on serving the lighting and display industry, our main products are reflow oven, wave soldering, pick and place machine and solder paste printer. We also have five series of main intelligent production line: lighting intelligent production line, Mini LED intelligent production line, flexible light strip intelligent production line, surface mount intelligent production line, robot flexible production line. It owns Anhui Grandseed automation Equipment and Shenzhen Songle intelligent equipment, which all are national high-tech enterprice.



Grandseed has got more than one hundred independent intellectual property rights for core technologies, and successively established an industry-university-research cooperation base, a post-doctoral innovation practise base in Guangdong province, and a research center for LED intelligent equipment technology. We have unique advantages in design concept such as energy saving, enviromental protection, and information integration, aiming to become the global high-end intelligent equipment and application systems provider, and finally realize the great mission of "let human work easily and live happily".
